BWG Series Industrial Mixers

Quick Specs
  • Top Entry
  • Closed Tank Options
  • Right Angle, Worm Gear Drive
  • Plate Mount
  • Multiple Wetted Parts Material Options

Request A Quote Locate A Rep Support

Have questions or need additional support?
Contact Us »

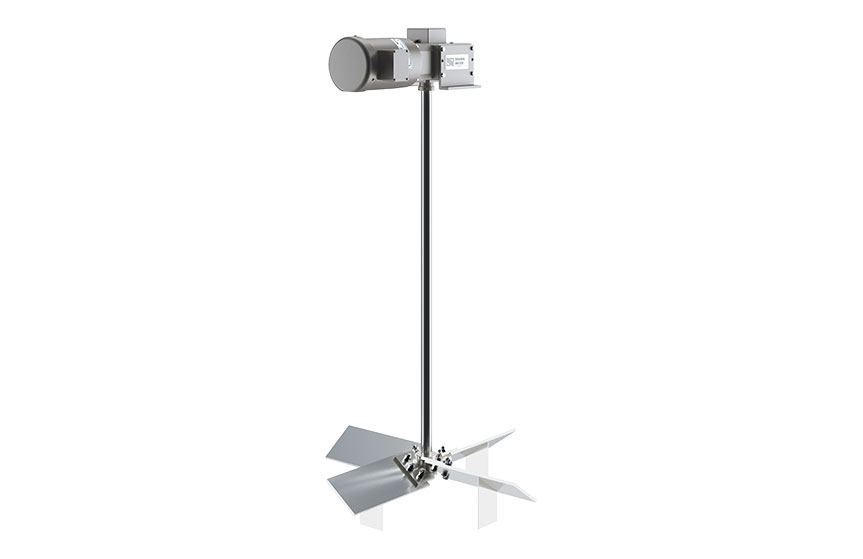

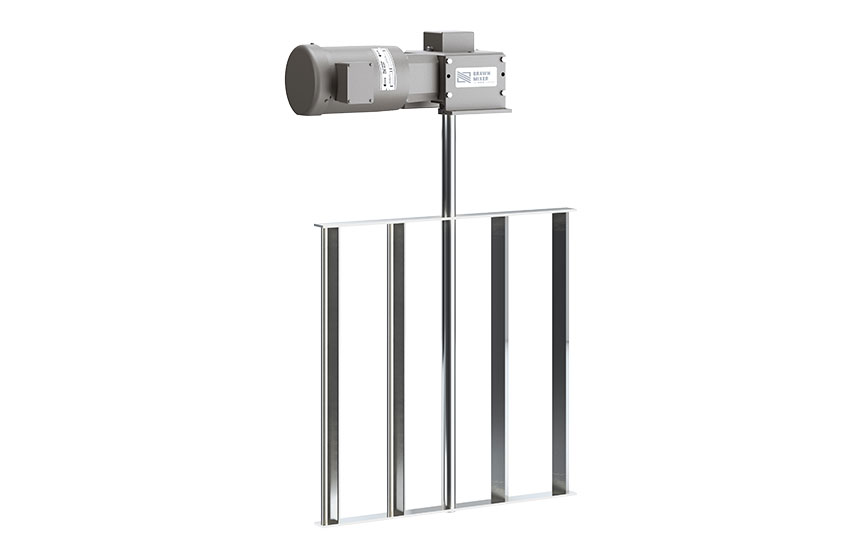

Brawn BWG series industrial mixers are a versatile solution for applications where headroom or other constraints require a compact mixer package. The BWG series features a worm gear drive in a right angle configuration that brings reliable performance to extreme duty applications at low speed, making it ideal for applications such as floccculation or polymer blending.

BWG series mixers can be configured with a variety of seal types. Housings can be specified in stainless steel or high strength aluminum, and feature flexible output couplings for torque protection.

Quick Specs
  • Top Entry
  • Closed Tank Options
  • Right Angle, Worm Gear Drive
  • Plate Mount
  • Multiple Wetted Parts Material Options

Request A Quote Locate A Rep Support

Have questions or need additional support?
Contact Us »

Mixer Configuration Options


Mounts

Open Tank
  • Fixed plate mount
Closed Tank
  • ANSI flange mount
  • Lip seal
  • Low/standard pressure stuffing box
  • Single or double mechanical seal, with lubrication system if required
  • Custom flange connections available
  • Separately mounted flange design available

Drives

Gear Drive
  • Right angle worm drive reduction
  • Various speeds available
  • All-stainless mixer assemblies available

Motors

Electric Motor
  • Standard three phase, 230/460 V, 1750 rpm TEFC motor.
  • Standard ½ HP – 2 HP motors. Inverter rated, washdown duty.
  • IEC and DC motors are available upon request.
  • IEEE 841
  • Chemical duty
  • Severe duty
  • Explosion proof
  • Single phase
  • Stainless steel
Air Motor
  • Air motors (up to 5 HP) available.

Impellers

AF3 Hydrofoil
A35 Impeller
Custom
  • Other impeller types available per application

Wetted Parts

  • 304SS standard
  • Carbon steel
  • 316SS
  • 316L
  • AL6XN
  • Alloy 20
  • Hastelloy
  • Duplex 2205
  • Titanium GR2
  • Other materials available upon request
  • Polish options available
  • Coating options available

Tanks

Tank design is rarely considered with the mixer in mind. However, process effectiveness is increased when both are done concurrently due to efficiencies gained as a result of optimizing both mixer and tank. Brawn can bring these design processes together with an in-house applications team that will develop the optimal tank and mixer solution, and deliver a process-ready unit directly to customer operations.

Custom Mixing Solutions

For many applications, process requirements demand more than just a mixer. For validation in hygienic operations, additional documentation is required to establish quality and output capabilities. For organizations with a high degree of process automation, system integration and comprehensive controls packages may be necessary. Or, for pilot and bench systems, design needs to incorporate whole-line process operations for scale-up. In each case, Brawn has the expertise and in-house capabilities to address these requirements and develop a completely custom mixing solution.

Support

Visit our BWG series support page for documentation, recommended spare parts, and other resources.

Visit BWG Series Support Page
