B Series Portable Mixers

Quick Specs
  • Top Entry
  • Closed Tank Options
  • Direct or Gear Drive
  • Parallel or Right Angle Drive Options
  • Multiple Standard Motor Configurations
  • Multiple Wetted Parts Material Options
  • Engineered Specials Available

Request A Quote Locate A Rep Support

Have questions or need additional support?
Contact Us »

Brawn B series mixers are the backbone for some of the most demanding applications in the processing industries. Our engineered-to-application approach, built on the Brawn modular platform and backed by the toughest quality standards, ensures long lasting performance.

The flexibility of the B series platform makes it well suited for larger batch/continuous mixing applications in a variety of industries, including chemical, food and beverage, pharmaceutical and life sciences, and health and beauty processing, as well as in water/wastewater treatment.

B series mixers are available with stainless steel or high strength aluminum housings and oversized driveshaft and bearings to increase performance and mixer life. Flexible output couplings also protect against excessive torque and absorb shock loads.

Quick Specs
  • Top Entry
  • Closed Tank Options
  • Direct or Gear Drive
  • Parallel or Right Angle Drive Options
  • Multiple Standard Motor Configurations
  • Multiple Wetted Parts Material Options
  • Engineered Specials Available

Request A Quote Locate A Rep Support

Have questions or need additional support?
Contact Us »

Mixer Configuration Options


Mounts

Open Tank

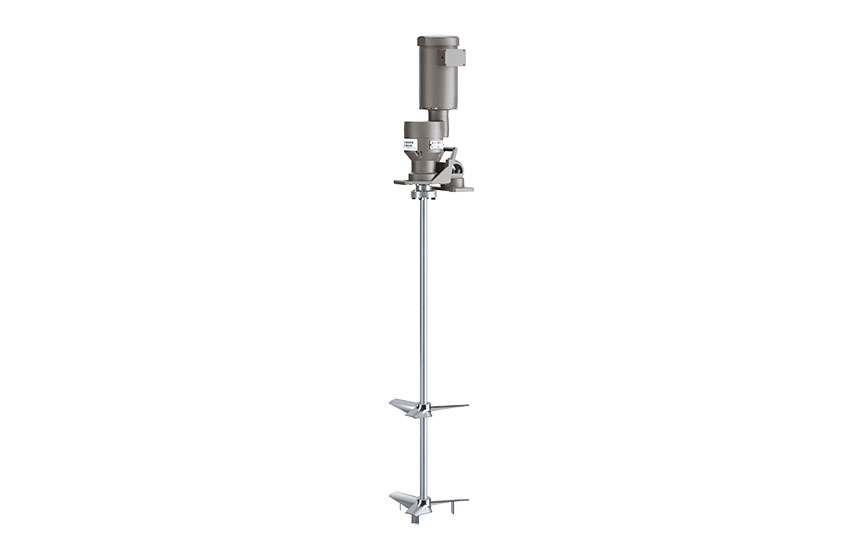

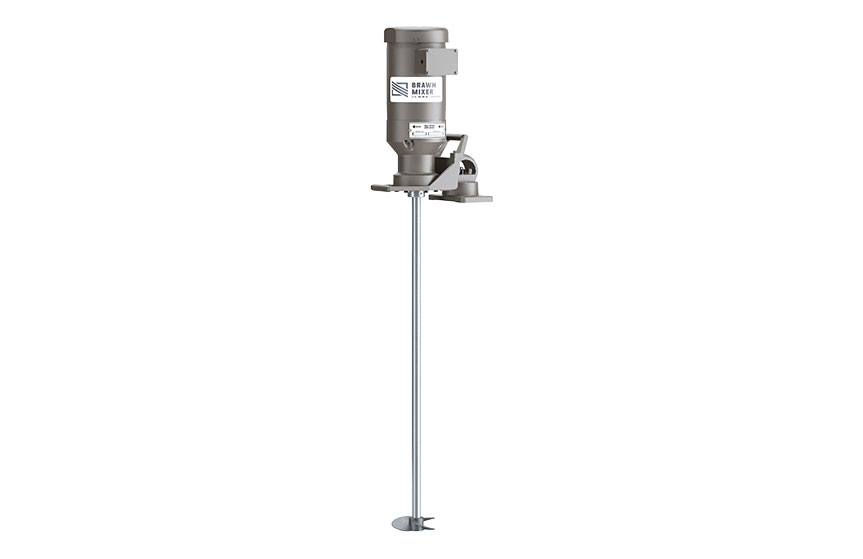

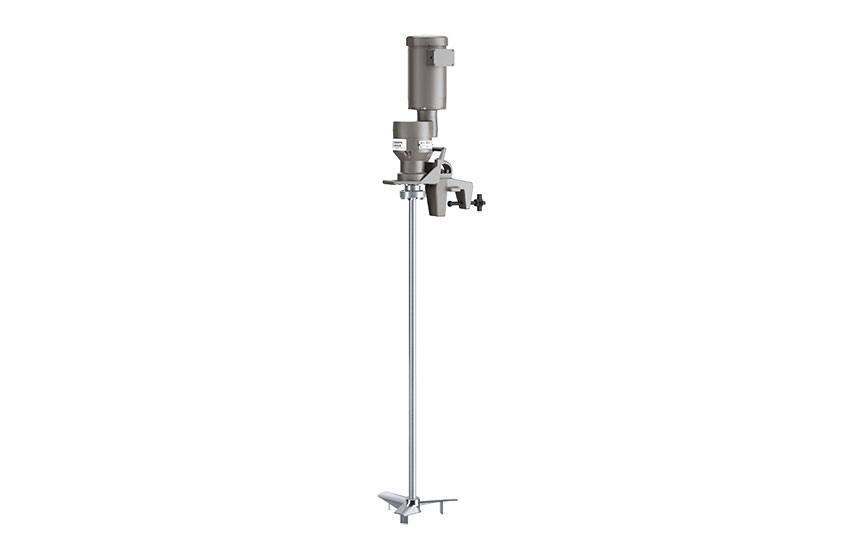

  • Clamp/adjustable beam mount

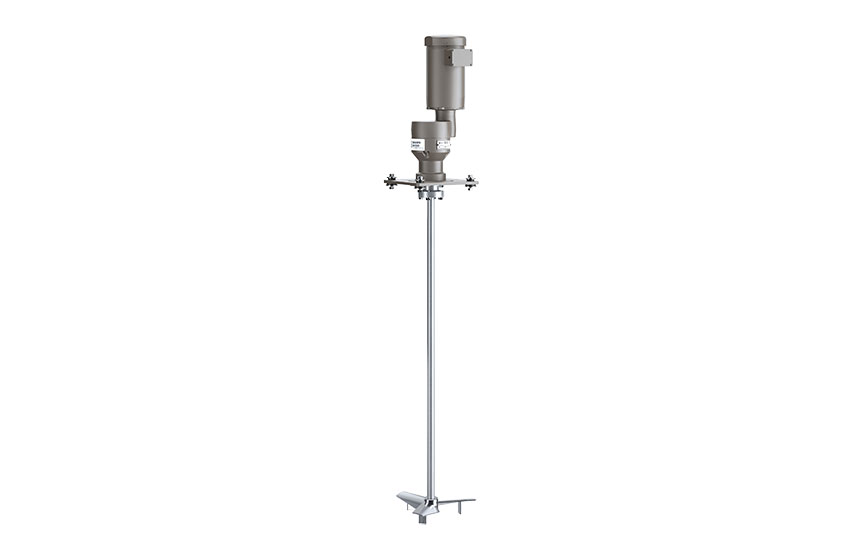

  • Fixed plate mount

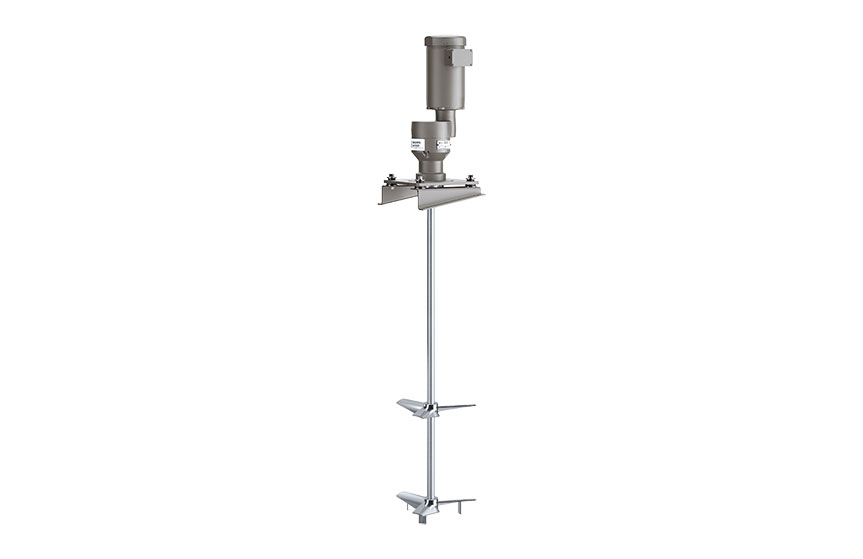

  • Angle riser mount
Closed Tank
  • ANSI flange mount
  • Tri-clamp fitting
  • Lip seal

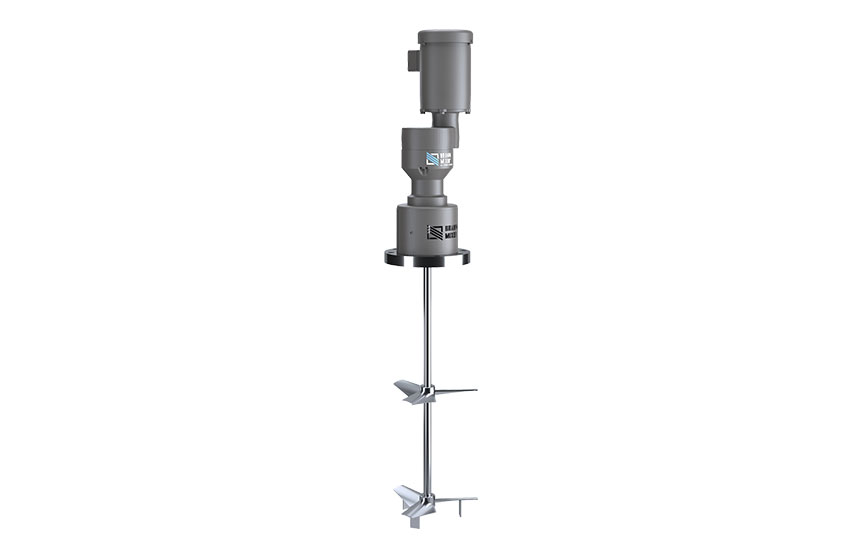

  • Low/standard pressure stuffing box
  • Single or double mechanical seal, with lubrication system if required
  • Custom flange connections available

Drives

Direct Drive
  • Tanks up to 3,000 gallons
Gear Drive
  • Tanks up to 5,000 gallons
Right Angle Drive Option
  • Right angle available for gear drive units
  • Additional output speed options available for right angle units

Motors

Electric Motor
  • Standard ½ - 2 HP, three phase, 1750 rpm motors. Inverter rated, washdown duty.
  • Standard ⅓ HP and ¾ HP, three phase, 870 rpm motors. Inverter rated, washdown duty.
  • IEC and DC motors are available upon request.
Air Motor
  • Up to 5 HP available.
  • Lubricated and non-lubricated.
  • All-stainless option.

Impellers

Square Pitch Prop
  • Standard for direct drive mixers
AF3 Hydrofoil
  • Standard for gear drive mixers
Custom
  • Other impeller types available per application

Wetted Parts

  • 316L/SS standard
  • AL6XN
  • Alloy 20
  • Hastelloy
  • Duplex 2205
  • Titanium GR2
  • Other materials available upon request
  • Polish options available
  • Coating options available

Additional Features

  • All-stainless mixer assembly available
  • Flexible output coupling
  • Fully sealed and lubricated bearings
  • Engineered specials available

Tanks

Tank design is rarely considered with the mixer in mind. However, process effectiveness is increased when both are done concurrently due to efficiencies gained as a result of optimizing both mixer and tank. Brawn can bring these design processes together with an in-house applications team that will develop the optimal tank and mixer solution, and deliver a process-ready unit directly to customer operations.

Custom Mixing Solutions

For many applications, process requirements demand more than just a mixer. For validation in hygienic operations, additional documentation is required to establish quality and output capabilities. For organizations with a high degree of process automation, system integration and comprehensive controls packages may be necessary. Or, for pilot and bench systems, design needs to incorporate whole-line process operations for scale-up. In each case, Brawn has the expertise and in-house capabilities to address these requirements and develop a completely custom mixing solution.

Support

Visit our B series support page for documentation, recommended spare parts, and other resources.

Visit B Series Support Page
