M Series Portable Mixers

Quick Specs
  • Top Entry
  • Closed Tank Options
  • Direct or Gear Drive
  • Flexible Output Coupling
  • Dual Sealed Bearings
  • Multiple Mount Options
  • Multiple Wetted Parts Material Options

Request A Quote Locate A Rep Support

Have questions or need additional support?
Contact Us »

Brawn M series mixers are engineered specifically for high performance in small-batch/continuous mixing applications, where the modular features of the B series mixers are required in a lighter, more economical package. The flexibility of the M series platform makes it well suited for applications in a variety of industries, including chemical, food and beverage, pharmaceutical and life sciences, and health and beauty processing, as well as in water/wastewater treatment.

M series mixers are available with stainless steel or high strength aluminum housings, and feature flexible output couplings for over-torque protection and to absorb shock loads. A variety of mounting options are also available.

Quick Specs
  • Top Entry
  • Closed Tank Options
  • Direct or Gear Drive
  • Flexible Output Coupling
  • Dual Sealed Bearings
  • Multiple Mount Options
  • Multiple Wetted Parts Material Options

Request A Quote Locate A Rep Support

Have questions or need additional support?
Contact Us »

Mixer Configuration Options


Mounts

Open Tank

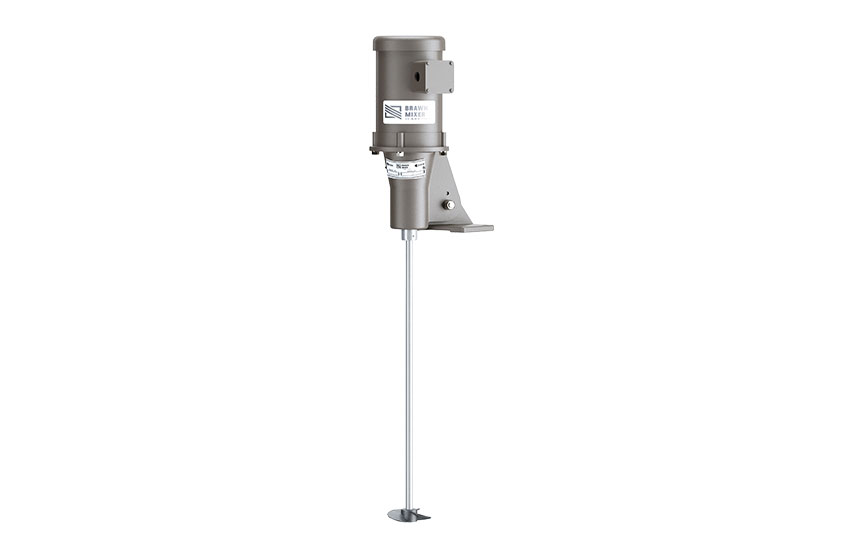

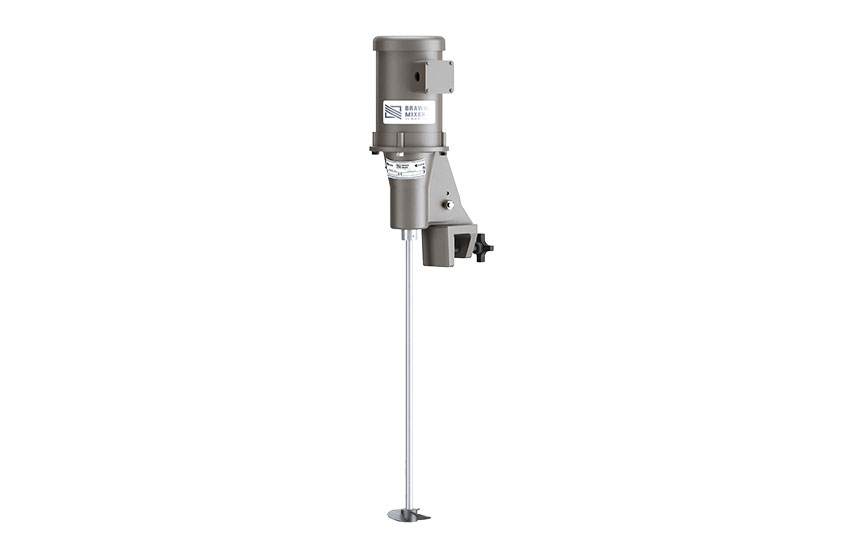

  • Clamp/adjustable beam mount

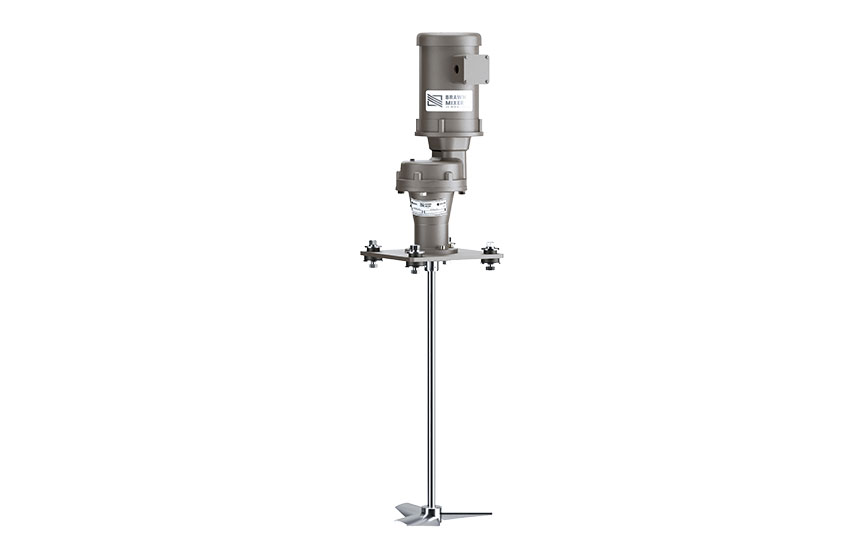

  • Fixed plate mount
  • Angle riser mount
Closed Tank
  • ANSI flange mount
  • Tri-clamp fitting
  • Lip seal
  • Low/standard pressure stuffing box
  • Single or double mechanical seal, with lubrication system if required
  • Custom flange connections available

Drives

Direct Drive
  • Tanks up to 1,000 gallons

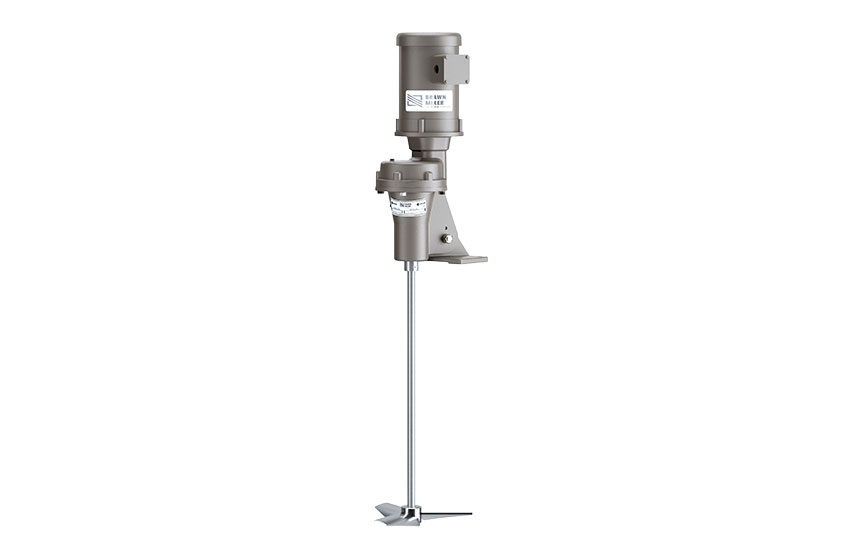

Gear Drive
  • Tanks up to 2,000 gallons

Motors

Electric Motor
  • Standard ½ - 2 HP, three phase, 1750 rpm motors. Inverter rated, washdown duty.
  • Standard ⅓ HP and ¾ HP, three phase, 870 rpm motors. Inverter rated, washdown duty.
  • IEC and DC motors are available upon request.
Air Motor
  • Air motors available.

Impellers

AF3 Hydrofoil
Square Pitch Prop
Custom
  • Other impeller types available per application

Wetted Parts

  • 316L/SS standard
  • AL6XN
  • Alloy 20
  • Hastelloy
  • Duplex 2205
  • Titanium GR2
  • Other materials available upon request
  • Polish options available
  • Coating options available

Additional Features

  • All-stainless mixer assembly available
  • Flexible output coupling
  • Fully sealed and lubricated bearings
  • Engineered specials available

Tanks

Tank design is rarely considered with the mixer in mind. However, process effectiveness is increased when both are done concurrently due to efficiencies gained as a result of optimizing both mixer and tank. Brawn can bring these design processes together with an in-house applications team that will develop the optimal tank and mixer solution, and deliver a process-ready unit directly to customer operations.

Custom Mixing Solutions

For many applications, process requirements demand more than just a mixer. For validation in hygienic operations, additional documentation is required to establish quality and output capabilities. For organizations with a high degree of process automation, system integration and comprehensive controls packages may be necessary. Or, for pilot and bench systems, design needs to incorporate whole-line process operations for scale-up. In each case, Brawn has the expertise and in-house capabilities to address these requirements and develop a completely custom mixing solution.

Support

Visit our M series support page for documentation, recommended spare parts, and other resources.

Visit M Series Support Page
