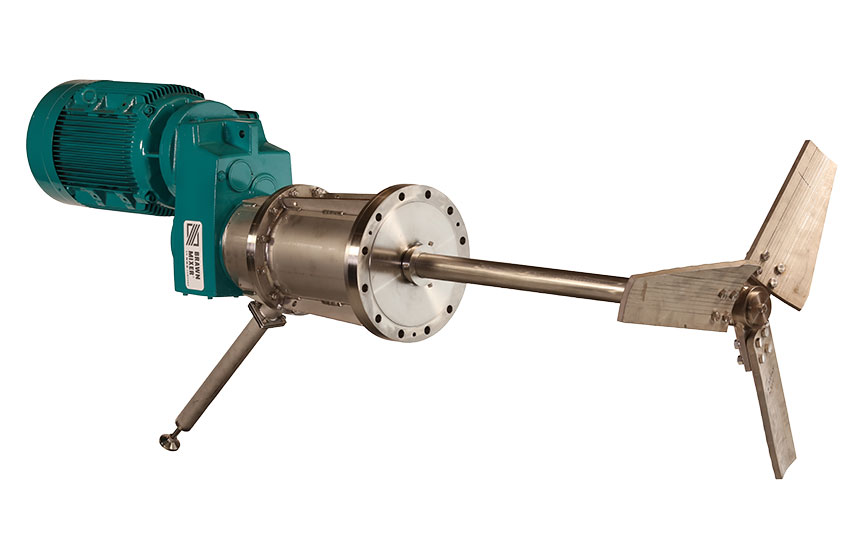

Side Entry Mixers

Quick Specs
  • Belt or Gear Drive
  • Multiple Seal Options
  • Hygienic Spec Available
  • Support Options

Request A Quote Locate A Rep Support

Have questions or need additional support?
Contact Us »

For large process operations, deep-tank mixing, or applications where top entry isn't a practical option, Brawn side entry mixers deliver a high level of efficiency, advanced sealing mechanisms, and performance to every tank size and application type.

Pre-engineered stuffing box and mechanical seal options are available for new mixers, or as retrofit kits for existing mixer models. For easier maintenance, an optional shutoff device can be included that permits work on seals without emptying tank contents. Right angle drive modules can be specified for applications where a more compact mixer package is desirable.

Quick Specs
  • Belt or Gear Drive
  • Multiple Seal Options
  • Hygienic Spec Available
  • Support Options

Request A Quote Locate A Rep Support

Have questions or need additional support?
Contact Us »

Mixer Configuration Options


Sealing Options

Stuffing Box
  • Standard pressure stuffing box
Mechanical Seal
  • Single or double mechanical seal, with lubrication system if required

Drives

Belt Drive
  • Various speeds available.
Gear Drive
  • Gear drives meet all applicable AGMA and ASTM standards.
  • Various speeds available.
Parallel or Right Angle Drive Options
  • Parallel and right angle configurations available.
  • Various speeds available.

Motors

Electric Motor
  • Standard three phase, 230/460 V, 1750 rpm TEFC motor.
  • IEC and DC motors are available upon request.
  • IEEE 841
  • Chemical duty
  • Severe duty
  • Explosion proof
  • Inverter rated
  • Washdown duty
  • Single phase
  • Stainless steel

Impellers

AF3 Hydrofoil

Wetted Parts

  • Multiple wetted parts material options

Supports

  • Tie rods
  • Pipe legs

Additional Features

  • Shut-off collar for ease of seal maintenance
  • Optional flush port

Tanks

Tank design is rarely considered with the mixer in mind. However, process effectiveness is increased when both are done concurrently due to efficiencies gained as a result of optimizing both mixer and tank. Brawn can bring these design processes together with an in-house applications team that will develop the optimal tank and mixer solution, and deliver a process-ready unit directly to customer operations.

Custom Mixing Solutions

For many applications, process requirements demand more than just a mixer. For validation in hygienic operations, additional documentation is required to establish quality and output capabilities. For organizations with a high degree of process automation, system integration and comprehensive controls packages may be necessary. Or, for pilot and bench systems, design needs to incorporate whole-line process operations for scale-up. In each case, Brawn has the expertise and in-house capabilities to address these requirements and develop a completely custom mixing solution.

Support

Visit our Side Entry mixer support page for documentation, recommended spare parts, and other resources.
