L/S Series Portable Mixers

Quick Specs
  • Top Entry
  • Direct or Gear Drive
  • Shaft Bearing
  • Clamp, Beam, and Bung Adapter Mounting
  • 316 Stainless Wetted Parts

Downloads

Have questions or need additional support?
Contact Us »

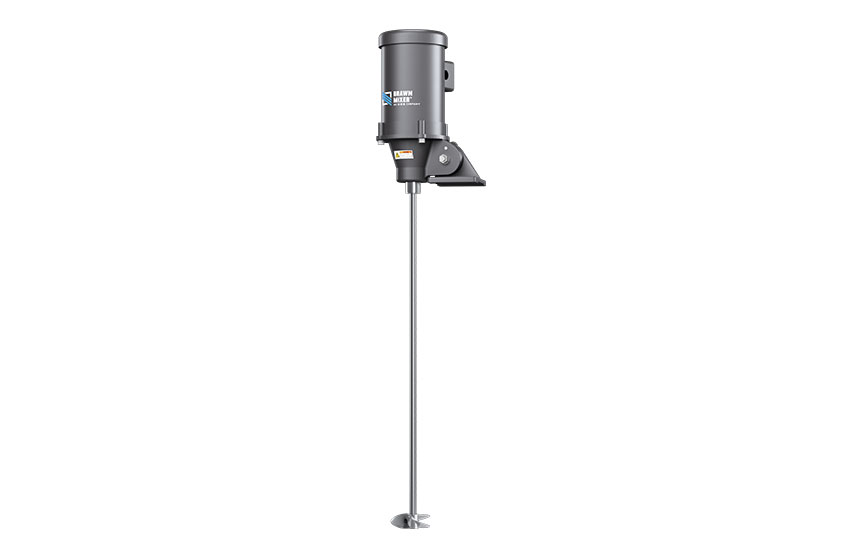

Brawn Mixer L and S Series mixers are an economical solution for small-volume applications. These mixers are designed for use with water or water-like fluids in tank sizes up to 500 gallons. Additional bearing support in the S Series provides longer life and additional versatility.

Motors are supplied in either ⅓ HP single or 3-phase models, with air and variable speed options also available.

Quick Specs
  • Top Entry
  • Direct or Gear Drive
  • Shaft Bearing
  • Clamp, Beam, and Bung Adapter Mounting
  • 316 Stainless Wetted Parts

Downloads

Have questions or need additional support?
Contact Us »

Mixer Configuration Options


Mounts

Open Tank
  • Clamp/adjustable beam mount
Closed Tank
  • 2" NPT Bung mount shown
  • Intermediate Bulk Container (IBC) tote cap and bridge mounts

Drives

Direct Drive
  • Tanks up to 200 gallons
Gear Drive
  • Tanks up to 500 gallons

Motors

Electric Motor
  • ⅓ HP, 1750 rpm TEFC motors. Available in single or three-phase.
  • IEC and DC motors are available upon request.
Air Motor
  • Air motors available.

Impellers

Square Pitch Prop
  • Standard for direct drive mixers
Steep Pitch Prop
  • Standard for gear drive mixers

Wetted Parts

  • 316L/SS standard

Tanks

To improve effectiveness, tank design should be considered with the mixer in mind. Brawn Mixer can bring these design processes together with an in-house applications team that will develop the optimal tank and mixer solution, which delivers a process-ready unit directly to customer operations.

Custom Mixing Solutions

For many applications, process requirements demand more than just a mixer. For validation in hygienic operations, additional documentation is required to establish quality and output capabilities. For organizations with a high degree of process automation, system integration and comprehensive controls packages may be necessary. Or, for pilot and bench systems, design needs to incorporate whole-line process operations for scale-up. In each case, Brawn Mixer has the expertise and in-house capabilities to address these requirements and develop a completely custom mixing solution.

Support

Visit our L/S Series support page for documentation, recommended spare parts, and other resources.

Visit L/S Series Support Page
